Brand: RideTech
Manufacturer’s Part Number: 12105010
Part Type: Suspension Handling Packages
Product Line: RideTech StreetGrip Suspension Systems
Summit Racing Part Number: ART-12105010
UPC: 840123507884

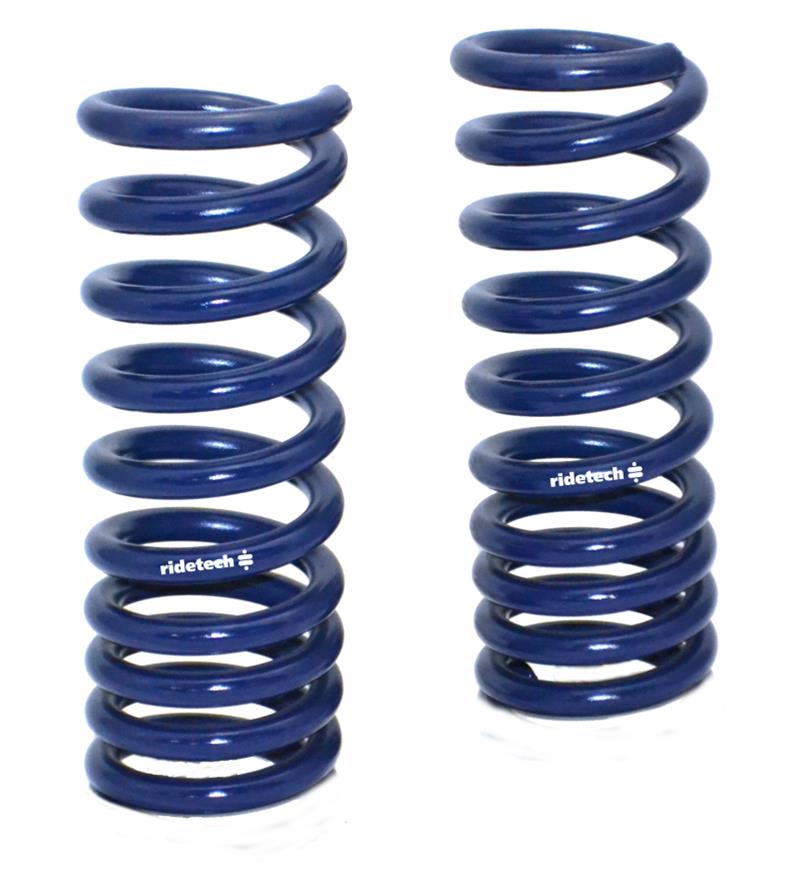

Front Coil Springs Included: Yes
Rear Coil Springs Included: No
Rear Leaf Springs Included: Yes
Front Shocks/Struts Included: Yes

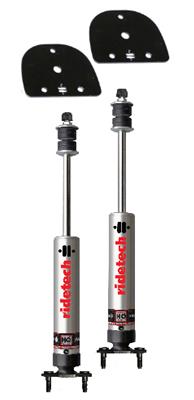

Front Shock Type: Gas-charged adjustable monotube
Rear Shocks/Struts Included: Yes
Rear Shock Type: Gas-charged adjustable monotube

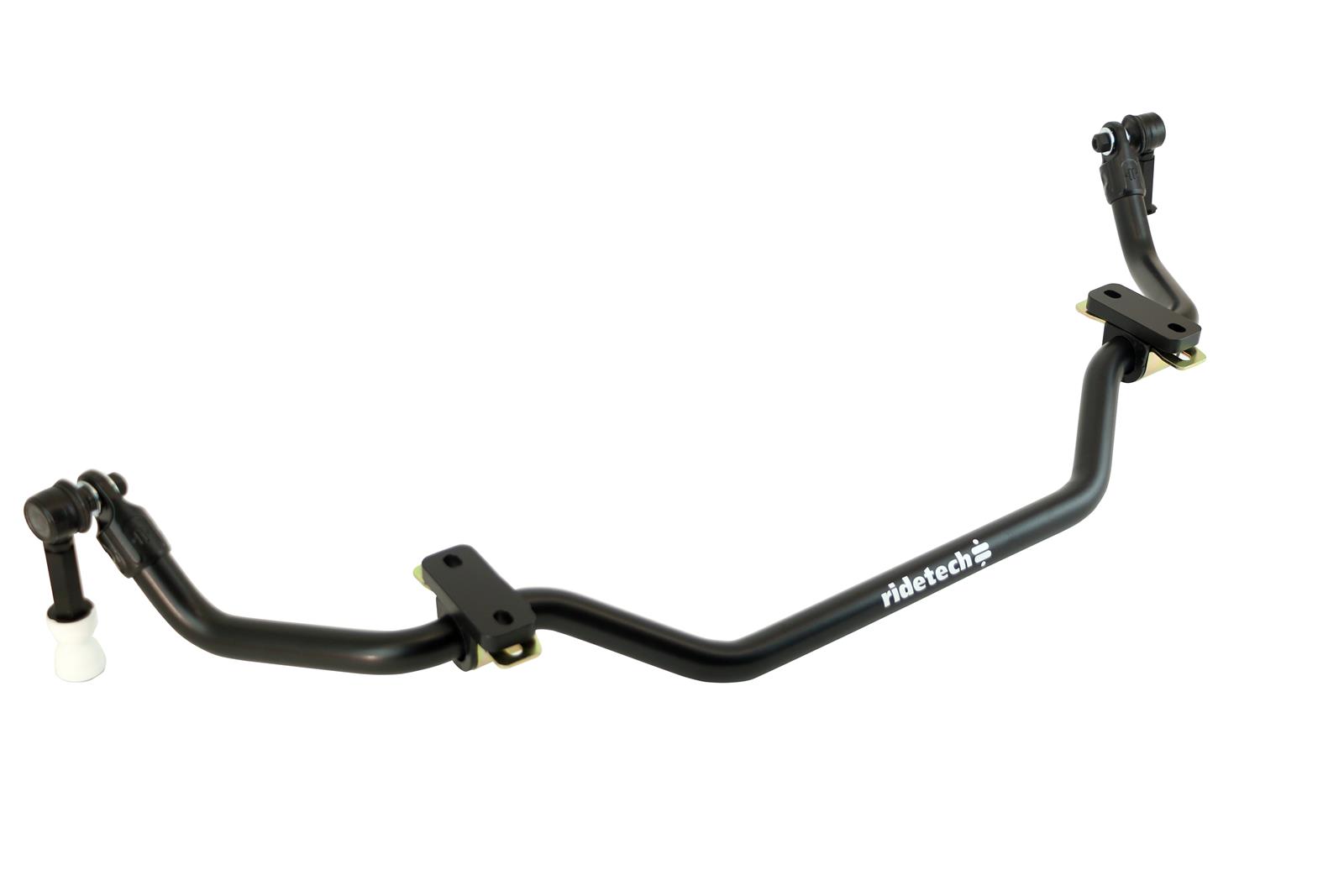

Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Type: Solid
Rear Sway Bar Included: No
Tie Rod Sleeves Included: Yes
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: Yes
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: No
Lower Trailing Arms Included: No
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: No
Lower Control Arms Included: No
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: Yes
Outer Tie Rod Ends Included: Yes
Bushing Material: Delrin®
Bushing Color: Black
Mounting Hardware Included: Yes
Quantity: Sold as a kit.

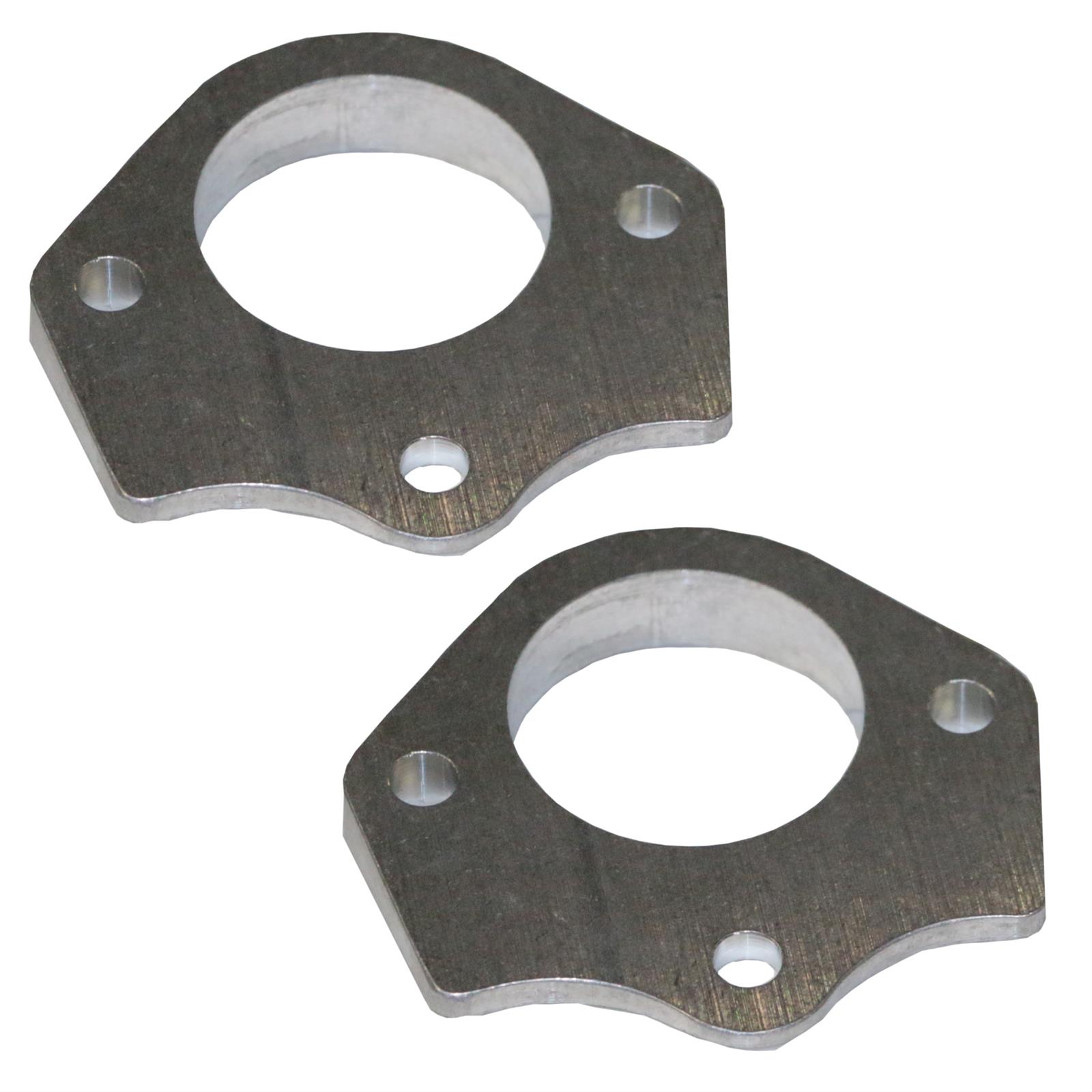

Notes: Includes ball joint wedge plates and control arm cross shafts. Please specify 3- or 4-bolt hole ball joint plates, factory power or manual steering, and if using 1970 steering components when ordering.
What are some of the virtues of a quality RideTech StreetGrip suspension system? For starters, they’re easy to install. The Delrin bushings eliminate deflection, and dual-rate springs allow the vehicle to transition small road irregularities via a compliant spring rate. Adjustable monotube shocks deliver premium ride quality and handling performance, while the tall upper ball joints reposition the control arms to correct camber for more stability. Sway bar end links are also included to minimize body roll through corners. Give your vehicle the components it needs to handle the road with a StreetGrip suspension system—RideTech’s one-box solution for better ride and control. Order the model designed for fitment on your vehicle.
