Overview
Brand: Hotchkis Sport Suspension
Manufacturer’s Part Number: 80040-2
Part Type: Suspension Handling Packages
Product Line: Hotchkis Sport Suspension TVS Systems
Summit Racing Part Number: HSS-80040-2
UPC: 00810361038617

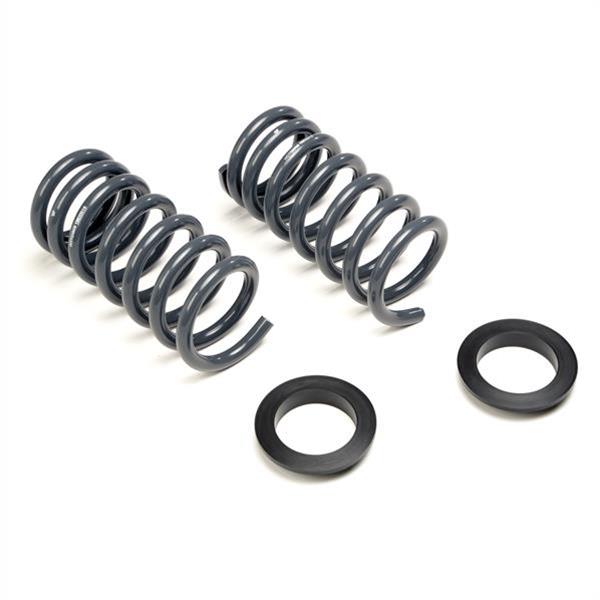

Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes

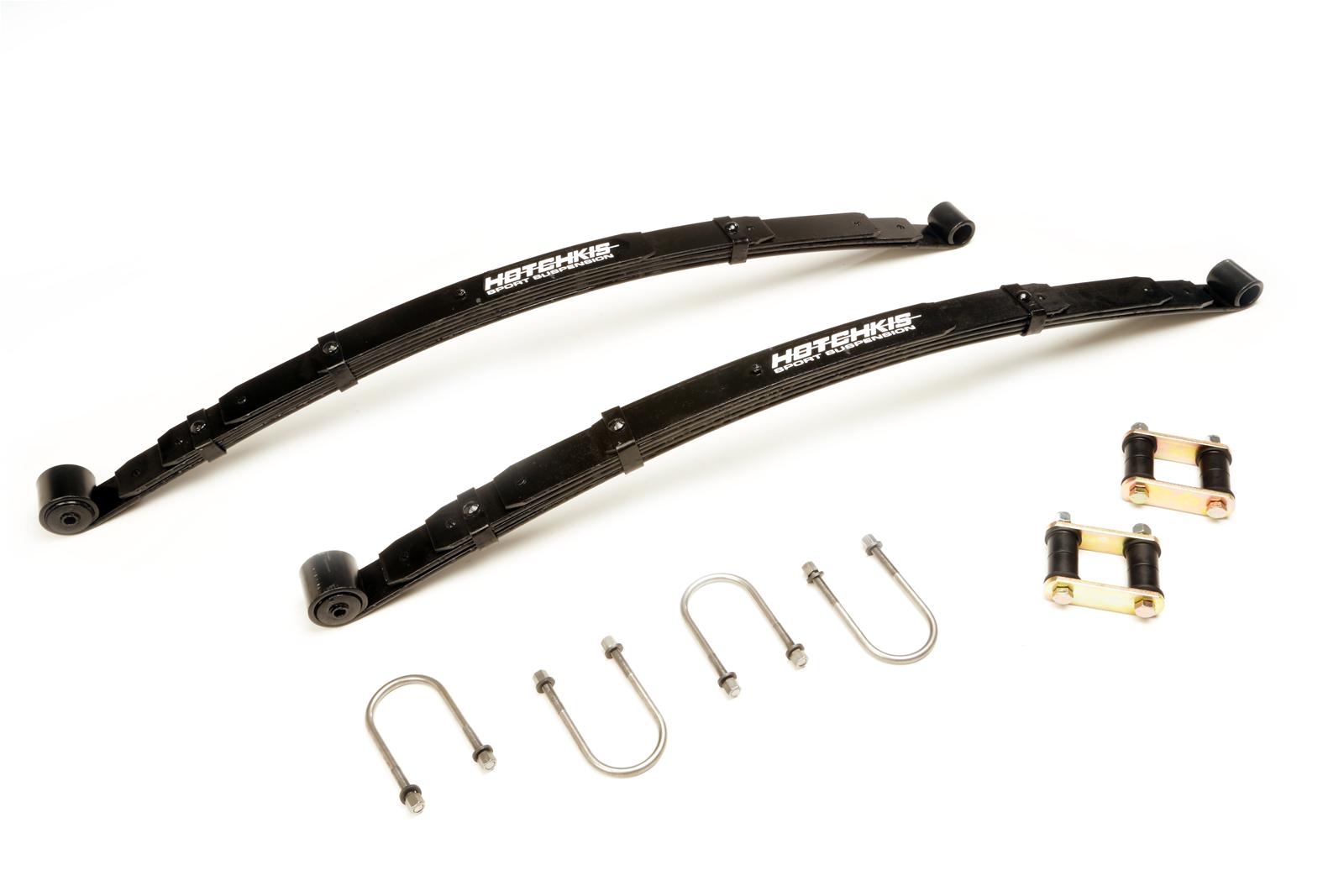

Rear Leaf Springs Included: Yes

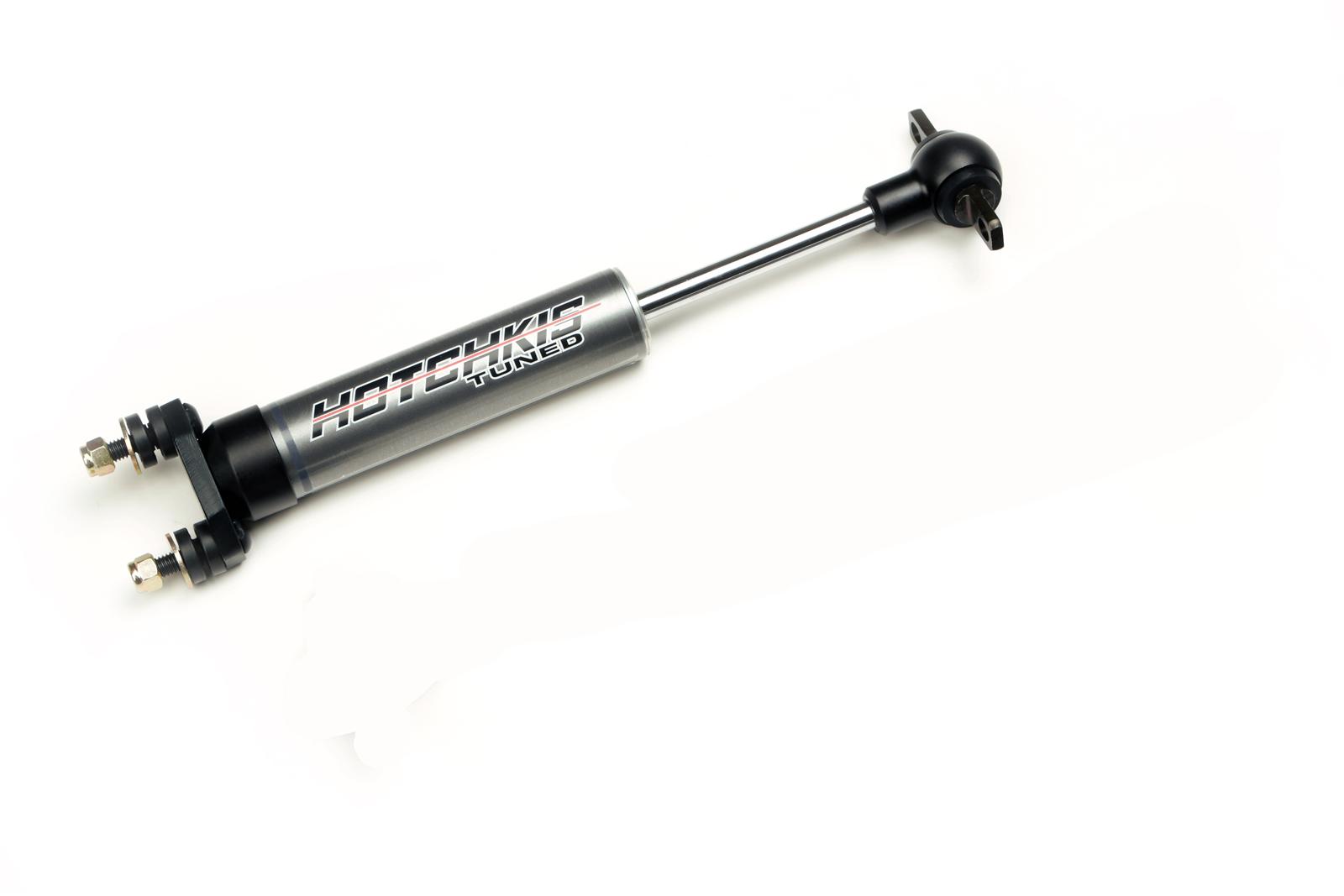

Front Shocks/Struts Included: Yes
Front Shock Type: Gas-charged monotube
Rear Shocks/Struts Included: Yes
Rear Shock Type: Gas-charged monotube
Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Type: Hollow
Front Sway Bar Diameter (in.): 1.250 in.
Front Sway Bar Diameter (mm): 32.00 mm

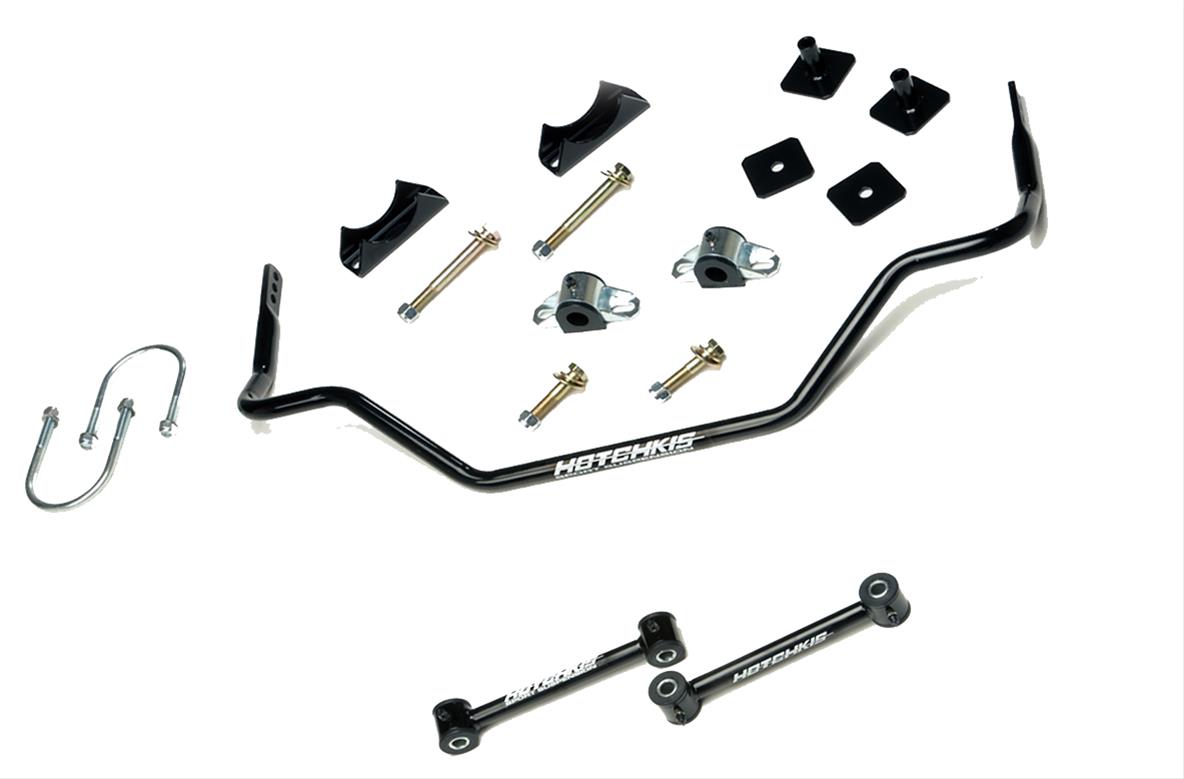

Rear Sway Bar Included: Yes
Rear Sway Bar Color: Black
Rear Sway Bar Type: Hollow
Rear Sway Bar Diameter (in.): 0.875 in.
Rear Sway Bar Diameter (mm): 22.00 mm

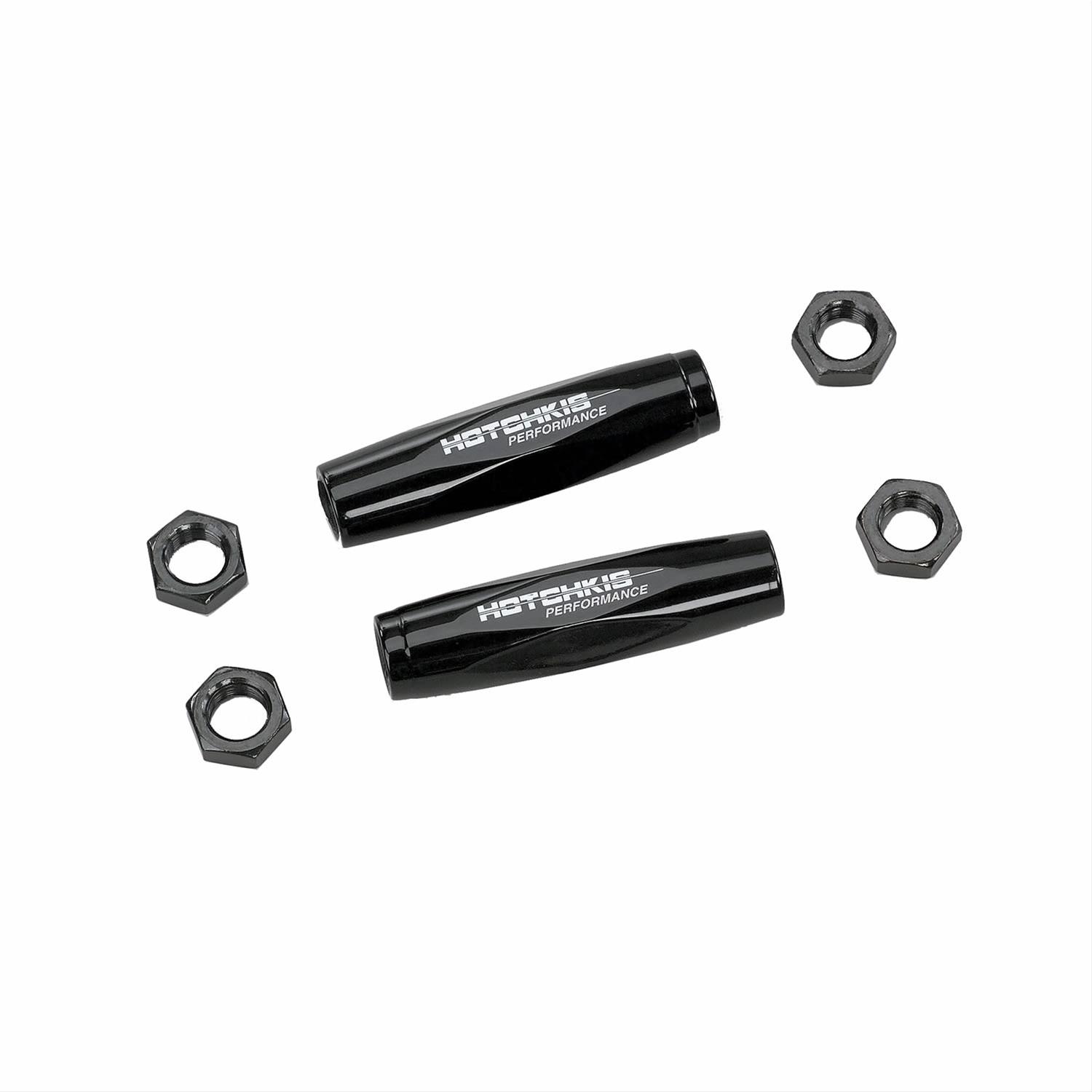

Tie Rod Sleeves Included: Yes
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: Yes
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: No
Lower Trailing Arms Included: No
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No

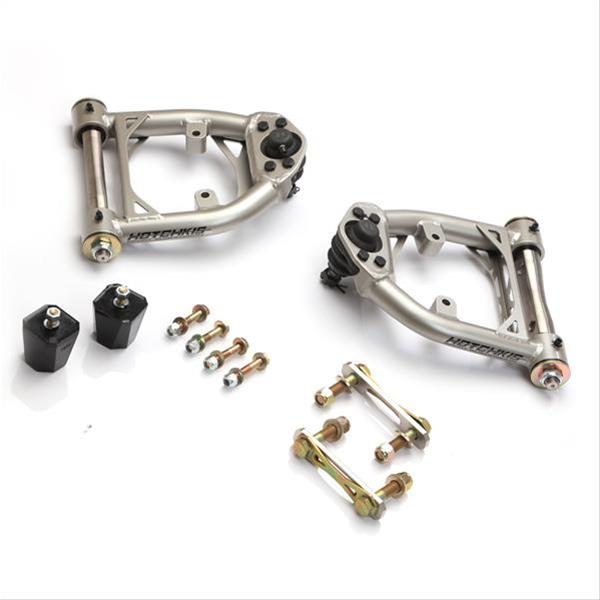

Upper Control Arms Included: Yes

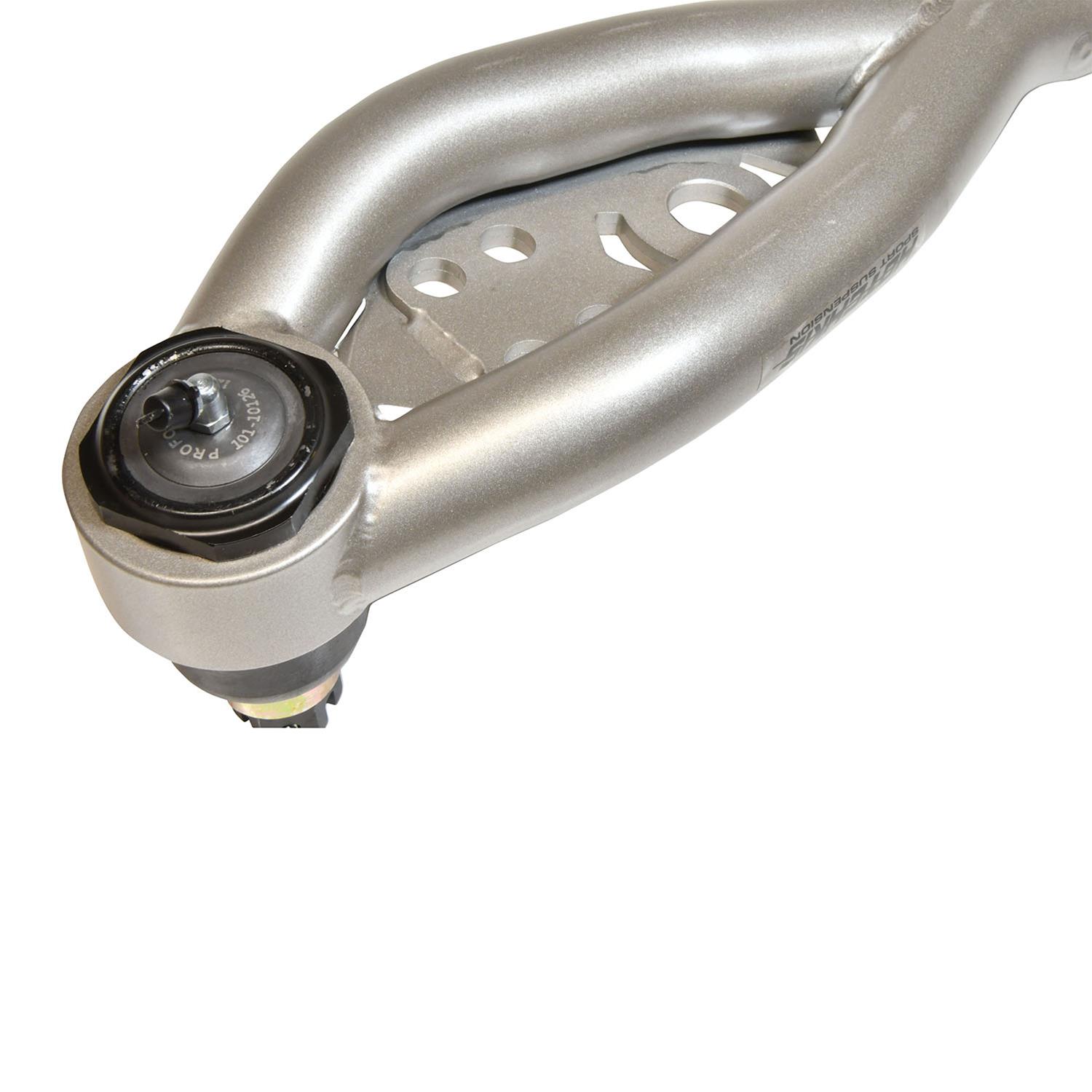

Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Gold
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No

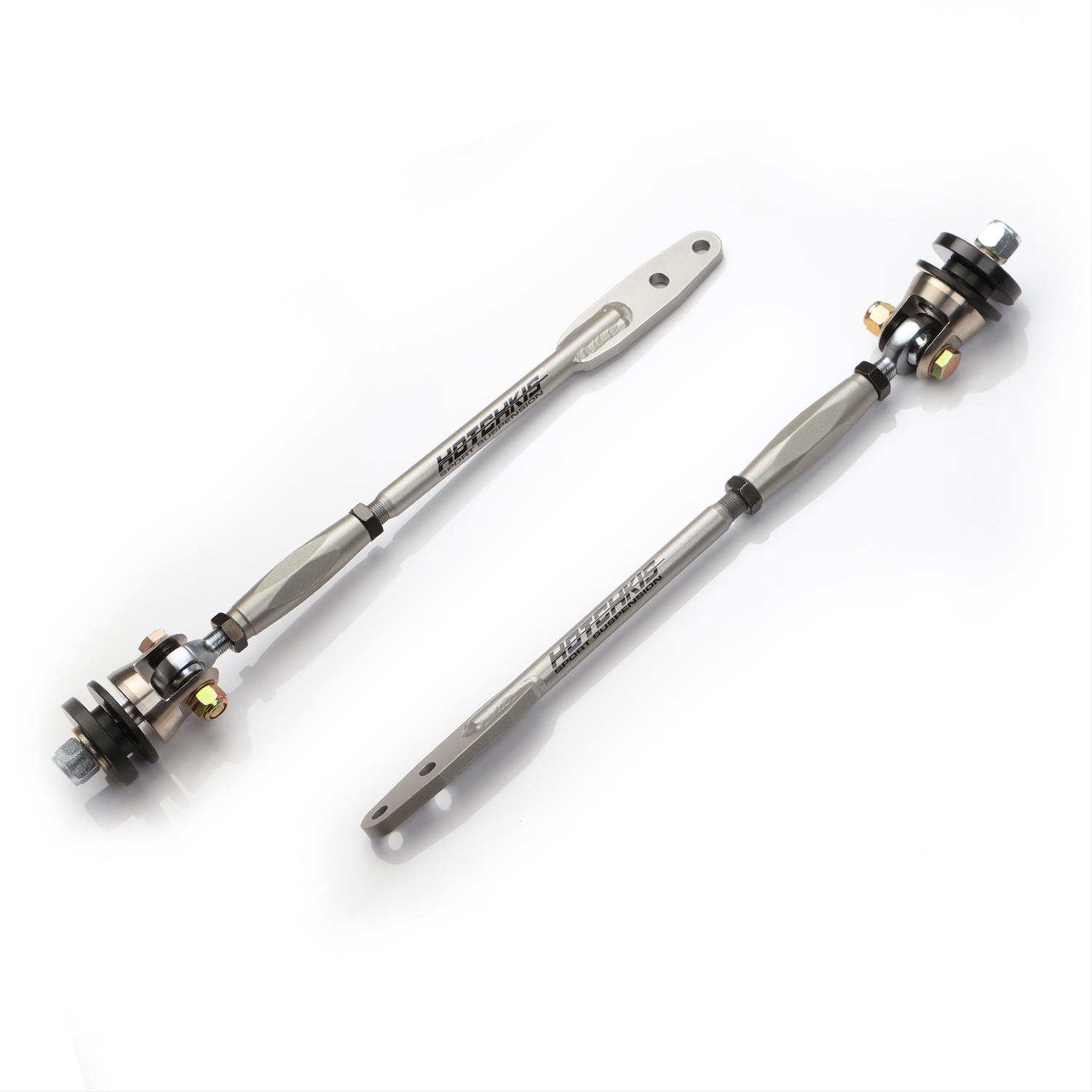

Subframe Connectors Included: Yes
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Bushing Material: Polyurethane/Delrin®
Bushing Color: Black
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Hotchkis Sport Suspension TVS Systems
These Hotchkis Sport Suspension TVS systems are all-inclusive kits that have been designed and tested as systems. There’s no need to mix and match components–Hotchkis Sport Suspension TVS systems include everything you need for suspension and handling that can’t be beat.
